Tianjin Hongda： JWF1458 automatic doffing roving machine system makes production more automated




Successfully developed in 2015, JWF1458 automatic doffing roving machine system, composed of JWF1458 automatic doffing machine, JWF9562A transfer system in roving-spinning unit, as well as JWF0123A tail yarn clearing machine, realizes all functions of automatic doffing roving machine and roving-spinning unit, with many patented technology reaching the international advanced level.

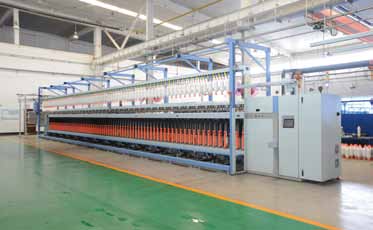

JWF1458 automatic doffing roving machine realizes complete automation with external automatic doffing system, from doffing, tube-replacement, repiecing to driving; bobbin adopts cog belt for grouping transmission, each group with 12 spindles as well as maximum number of 192 spindles; winding and setting after full yarn ensures the stability of roving during transportation and storage; perfect system function, network-based management, as well as business idea-oriented industrial design make the most
eye-catching.

JWF 9562A transfer system in roving-spinning unit, with manual and automatic work form, first adopts RFID technology to monitor the process in real-time, achieving the recognition, management and intelligent transportation of spinning variety; wireless network technology makes it possible for mobile terminal to control, remotely monitor and debug the system in any position of production sites; free switches between fast and slow speed achieves precise positioning of full yarn chain in the spinning machine; three-dimensional roving warehouse with functions of intelligent storage and humidification, could save occupied area.

JWF 0123A tail yarn clearing machine could clean the tail yarn of roving-spinning track and spinning waste adsorbed on tape, which simultaneously cleans 8 tubes with better efficiency and low-damage
