Changzhou Diba Textile Machinery Co., Ltd.
Nov 10, 2015 ｜ by
Changzhou Diba Textile Machinery Co., Ltd.
Changzhou Diba Textile Machinery Co., Ltd. under China Liangchun Group was founded by Mr. Tan Liangchun in 1984. It is a professional and high-tech manufacturer in the field of warping and warp knitting machine, equipped with more than 300 proprietary technologies as well as advanced production and testing equipment and well established IT managerial system.
Introduction of the Product
This machine can meet the demand of various kinds of elastic spandex wrap’s requirement, especially the production of high quality matte plain cloth’s demand on spandex warping. Reducing the usage quantities of the warp beams on warp knitting machine effectively and improving the quality of the cloth. So the machine has the quality of long warping shaft and high precision which is suitable for elastic materials.

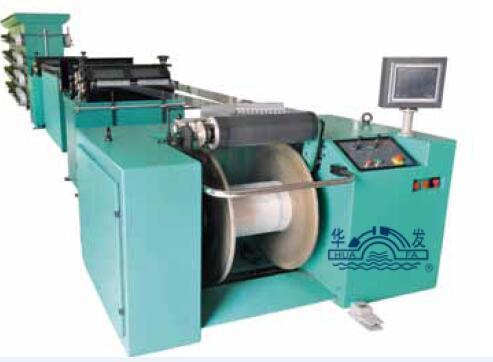

GE628 broad width and vertical spandex warping machine adopts five high-performance Lenze servo motor drives, the latest 9400 high-precision servo drive systems and the advanced laser range finders as well as technological equipments which imported from Germany, with the high quality of reliability, controllable accuracy, complete equipments, simple operation, etc. The speed of the whole process of warping is constant and the tension is under control.
In addition, the system has self-diagnosis function, monitoring the status of the machine and yarn tension, ensuring the safety and reliability of the system. The applied warping beam size is (∮21* 42) inches, and (∮30*42) inches is compatible. The max linear speed of yarn cone reaches 300 m/min and the top speed of warping beam is 600 m/min. The stop error should be controlled within ±3%, ensuring that a warping shaft can pause many times, but there’s no impact on the yarn drafting.

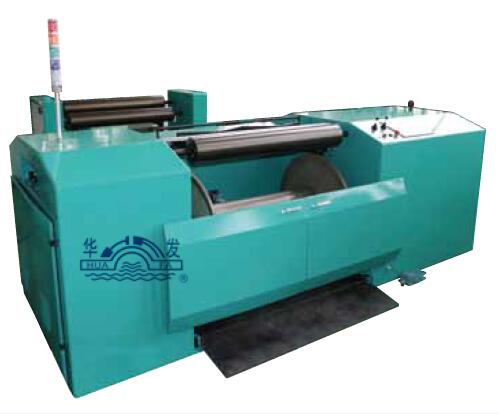

GE518 Warping Machine: Applicable for the big warp shaft warping machine’s requirement
The machine is invented for market requirement of the big warp shaft machine. Warping beam size (∮21*42) inches, (∮21*30) inches. Adopting the PLC and the main inverter controls and Roller variable frequency drives to implement communication control. The machine is applied to brocade, polyester filament, low stretch yarn, viscose yarn, acrylic yarn and spun yarn, etc.
GE518 microcomputer monitors the copying warping machine with the adoption of programmable controller owned by Huichuan Company. the INVT company’s main inverter and roller variable frequency drive is stable and reliable, with the high controllable precision and convenient operation; The main shaft adopts disc style brake with rapid function; By fall and blowing detection device, the monitoring of yarn breakage is much reliable, convenient and practical; the zigzag sley and tachometer roller move integrally.

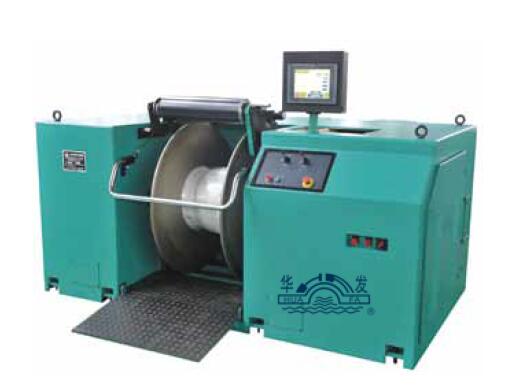

GE358 Split Yarn Warping Machine: Leave out the process of “split yarn”, energy conservation and emission reduction
This machine is a high-performance warping machine which is suitable for polyester and nylon materials. It will split and wind the yarn on the motherboard directly. Compared to the traditional section warping machine, it integrates the "split" process, i.e., it also saves the power at process. Obviously the machine can save 288 electric energies if 8 hours running per day. Furthermore the whole process of warping keeps the constant linear velocity and the tension is controllable and uniform. Raised the quality of the warp knitting fabric and optimized the industrial chain.
The Double Needle Bar Warp Knitting Machine: Open up the new market space
DRJ6/1 double needle bar Jacquard warp knitting machine is a new type. The machine equipped with electrical jacquard system, forming abundant three-dimensional patterns and producing the interval fabrics (commonly known as “sandwich”) that in great demand; can make out double needle bar fabric with simple or colorful yarn. DR7 high speed of double needle bar warp knitting machine is the key equipment for producing upright velvet, velvet, velveteen, which fabric has the quality with feature of plump and soft, and plush yarn not easy falling off from the backer by looping formation.
The above two double needle bar warp knitting machines both can be applied to knitting general chemical fibers like polyester, polyamide, acrylic, polypropylene fiber, viscose, and natural material fibers like worsted cotton yarn and blended yarn, which finished fabric can be widely used in car cushion, sofa cloth, Simmons, wall cloth, cotton blanket, curtains and other household decorative fabrics, the machine can also be used for garment fabric and shoes materials.
